Steering Lock Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column
Center-punch both of the shear bolts (A), and drill their heads off with a 5 mm (0.2 in) drill bit. Be careful not to damage the steering lock when removing the shear bolts.

Fig 1: Drilling Shear Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the shear bolts from the steering lock (B), then remove the steering.
Remove the immobilizer-keyless control unit from the steering lock, then install it to the new steering lock (see IMMOBILIZER-KEYLESS CONTROL UNIT REGISTRATION ).
Install the steering lock without the key inserted.
Loosely tighten the new shear bolts.
Insert the ignition key, and check for proper operation of the steering wheel lock and that the ignition key turns freely.

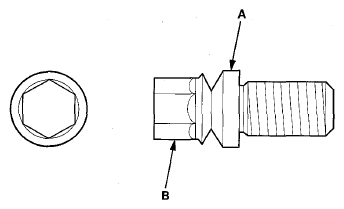

Tighten the shear bolts (A) until the hex heads (B) twist off.

Fig 2: Identifying Shear Bolts And Hex Heads
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the steering column
Rewrite all new keys to the new immobilizer control unit-receiver (see IMMOBILIZER KEY REGISTRATION ), and make sure the immobilizer system works properly.
