Steering Column Inspection

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column
  2. Check these items.
    • Check the steering column ball bearing (A) and the steering joint bearings (B) for play and proper movement. If any bearing is noisy or has excessive play, replace the steering column as an assembly.
    • Check the sliding capsules (C) for distortion or breakage. If there is distortion or breakage, replace the steering column as an assembly.
    • Check the tilt mechanism and telescopic mechanism for movement and damage.
    • Check the absorbing plates (D) for distortion or breakage. If there is distortion or breakage, replace the steering column as an assembly.

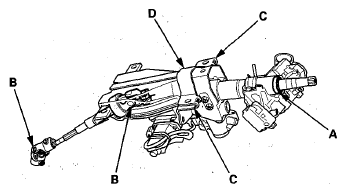

    Fig 1: Identifying Steering Column Ball Bearing And Steering Joint Bearings With Absorbing Plates
    G08054807Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the steering column
