Thickness and Parallelism

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  2. Remove the rear wheels.
  3. Remove the brake pads (see REPLACEMENT  ).
  4. Using a micrometer (A), measure the brake disc/drum thickness at eight points, about 45° apart and 10 mm (0.4 in) in from the outer edge of the brake disc/drum. Replace the brake disc/drum if the smallest measurement is less than the max. refinishing limit.

    Brake disc/drum thickness:

    Standard: 10.9-11.1 mm (0.429-0.437 in)

    Max. refinishing limit: 9.0 mm (0.354 in)

    Brake disc/drum parallelism:

    0.015 mm (0.00059 in) max.

    NOTE: This is the maximum allowable difference between the thickness measurements.

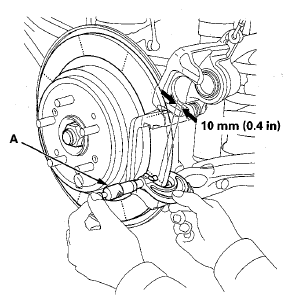

    Fig 1: Measuring Brake Disc/Drum Thickness Using Micrometer
    G08053054Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the brake disc/drum is beyond the service limit for parallelism, refinish the brake disc/drum with a commercially available on-car brake lathe.
    NOTE: If the brake disc/drum is beyond the service limit for refinishing, replace it (see REAR BRAKE DISC REPLACEMENT  ).
  6. Inspect the brake disc runout.
