Parking Brake Shoe Replacement: Disassembly

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the rear wheels.
Release the parking brake, and remove the rear brake disc/drum (see REAR BRAKE DISC REPLACEMENT ).

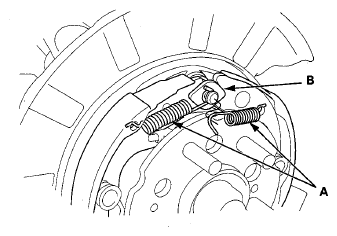

Disconnect and remove the upper return springs (A), then remove the shoe guide plate (B).

Fig 1: Identifying Upper Return Springs And Shoe Guide Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the tension pins (A) by pushing the respective retainer (B) and turning the pin.

Fig 2: Identifying Tension Pins And Respective Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the strut (A), and the rod spring (B).

Fig 3: Identifying Strut And Rod Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the parking brake shoe assembly.

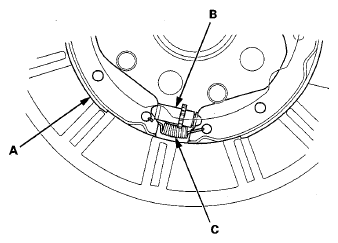

Remove the forward brake shoe (A) and the adjuster assembly (B) by removing the lower return spring (C).

Fig 4: Identifying Brake Shoe, Lower Return Spring And Adjuster Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

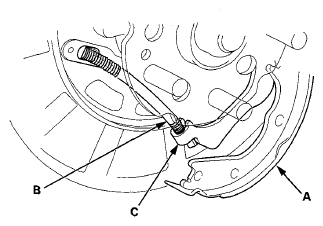

Remove the rearward brake shoe (A) by disconnecting the parking brake cable (B) from the parking brake lever (C).

Fig 5: Identifying Brake Shoe, Parking Brake Cable And Parking Brake Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.

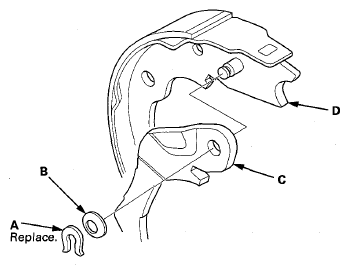

Remove the U-clip (A), wave washer (B), and parking brake lever (C) from the brake shoe (D).

Fig 6: Identifying Parking Brake Lever, Brake Shoe, Washer And U-Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
