Parking Brake Pedal Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the driver's outer dashboard trim (see DRIVER'S OUTER DASHBOARD TRIM REMOVAL/INSTALLATION ).
  3. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  4. Remove the left kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  5. Release the parking brake pedal fully.
  6. Disconnect the parking brake switch connector (A) from the parking brake switch, and remove the harness clips.

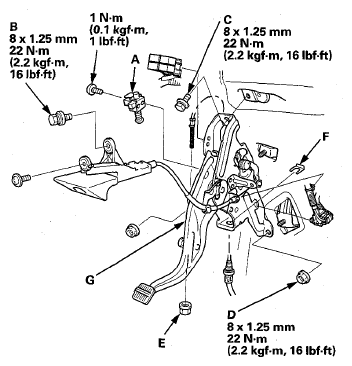

    Fig 1: Parking Brake Switch Connector Replacement Components With Torque Specifications
    G08053086Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the parking brake release lever mounting bolt(B).
  8. Remove the parking brake pedal bracket mounting bolt (C) and nuts (D).
  9. Remove the parking brake adjusting nut (E) and the cable clip (F).
  10. Disconnect the parking brake cable from the parking brake pedal (G), and remove the parking brake pedal assembly.
  11. Remove the parking brake switch and release lever assembly.
  12. Install the parking brake pedal assembly in the reverse order of removal, and note these items:
