Parking Brake Inspection and Adjustment: Inspection

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Press the parking brake pedal (A) with 294 N (30.0 kgf, 66.1 lbf) of force to fully apply the parking brake. The parking brake pedal should be locked within the specified number of clicks.
Pedal locked clicks: 9 to 11 clicks

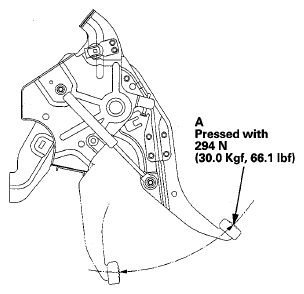

Fig 1: Identifying Parking Brake Pedal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Adjust the parking brake if the pedal clicks are not within the specification.
NOTE: Minor parking brake pedal adjustments (1 to 2 clicks) can be made with the adjusting nut (see parking brake minor adjustment). If a larger adjustment is required, follow the major adjustment procedure using the adjuster nut at the parking brake drum (see parking brake major adjustment). After installing new parking brake shoes and/or new brake disc/drum, make sure you drive the vehicle for "break-in" (see PARKING BRAKE SHOE LINING BREAK-IN ).
