Pedal Height

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Turn the brake pedal position switch counterclockwise, and pull it back until it is no longer touching the brake pedal.
  3. Remove the driver's side kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  4. Remove the footrest (see step 2 under CARPET REPLACEMENT ).
  5. Pull back the carpet, and find the cutout (A) in the insulation. Measure the pedal height (B) from the left side middle of the pedal pad (C) to the floor (D) without the insulation.

    Standard pedal height (with carpet removed): 155 mm (6.10 in)

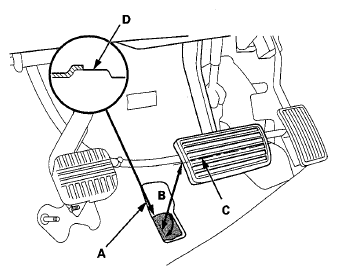

    Fig 1: Measuring Pedal Height From Left Side Middle Of Pedal Pad To Floor
    G08053010Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Loosen the pushrod locknut (A), and screw the pushrod (B) in or out with pliers until the standard pedal height from the floor is reached. After adjustment, tighten the locknut firmly. Do not adjust the pedal height with the pushrod pressed.
    Fig 2: Loosening And Tightening Pushrod Locknut
    G08053011Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Brake Pedal Position Switch Clearance

  7. Lift up on the brake pedal by hand. Push in the brake pedal position switch until its plunger is fully pressed (threaded end (A) touching the pad (6) on the pedal arm). Turn the switch 45 ° clockwise to lock it. The gap between the brake pedal position switch and the pad is automatically adjusted to 0.7 mm (0.028 in) by locking the switch. Make sure the brake lights go off when the pedal is released.

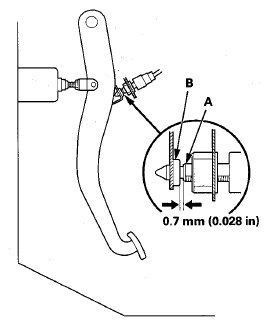

    Fig 3: Checking Brake Pedal Position Switch Clearance
    G08053012Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install all removed parts in the reverse order of removal.
  9. Check the brake pedal free play.
