Brake Pedal Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the TPMS control unit (see TPMS CONTROL UNIT REPLACEMENT ).
  3. Disconnect the brake pedal position switch connector (A), and remove the harness clips.

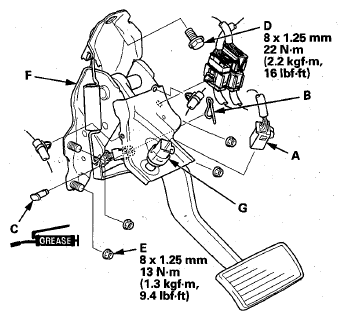

    Fig 1: Brake Pedal Position Switch Connector, Lock Pin And Joint Pin With Torque Specifications
    G08053076Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the lock pin (B) and joint pin (C).
  5. Remove the harness and connector clips.
  6. Remove the brake pedal bracket mounting bolt (D) and nuts (E).
  7. Remove the brake pedal with bracket (F).
  8. Remove the brake pedal position switch (G) by turning it counterclockwise.
  9. Install in the reverse order of removal.
  10. Do the brake pedal and brake pedal position switch adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT  ).
