Oil Jet Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL ).
  2. Remove the oil jet bolt (A), then remove the oil jet (B).

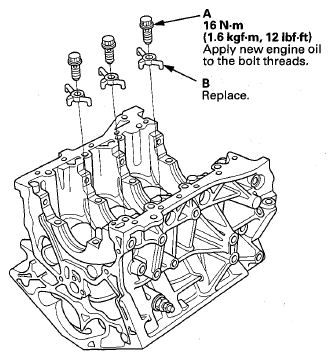

    Fig 1: Oil Jet And Oil Jet Bolt With Torque Specifications
    G08052350Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully install the new oil jet and tighten the oil jet bolt.
  4. Install the crankshaft (see CRANKSHAFT AND PISTON INSTALLATION ).
