Oil Filter Feed Pipe Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the oil filter (see ENGINE OIL FILTER REPLACEMENT ).
Remove the oil filter feed pipe.

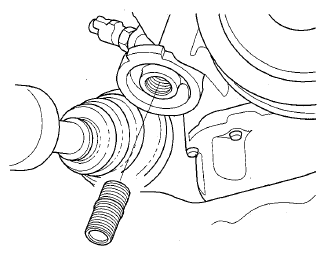

Fig 1: Identifying Oil Filter Feed Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install two 20 x 1.5 mm nuts (A) onto the new oil filter feed pipe, and hold one nut with a wrench, then tighten the other nut.

Fig 2: Identifying Oil Filter Feed Pipe 20 X 1.5 mm Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply new engine oil to the oil filter feed pipe threads, then torque the oil filter feed pipe to 35 N.m (3.5 kgf.m, 26 lbf.ft), then remove the nuts from the oil filter feed pipe.
Install the oil filter (see ENGINE OIL FILTER REPLACEMENT ).
