Front Bank (Bank2)

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

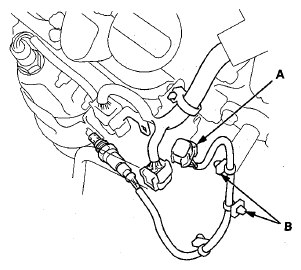

Disconnect the front secondary HO2S 4P connector (A), and remove the harness clamps (B).

Fig 1: Identifying Front Secondary HO2S 4P Connector And Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the vehicle on a lift.

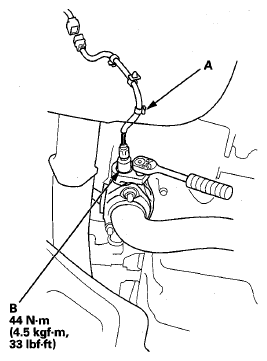

Remove the harness clamp (A), then remove the front secondary HO2S (B).

Fig 2: Identifying Front Secondary HO2S And Harness Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
