Vehicle Lift

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lift pads (A) under the vehicle's front support points (B) and rear support points (C).
    NOTE: Be sure the lift pads are properly placed to avoid damaging the vehicle.

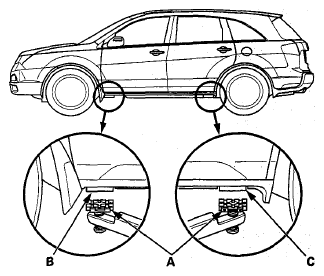

    Fig 1: Locating Lift Pads And Vehicle Support Points
    G08051913Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Raise the lift a few inches, and rock the vehicle gently to be sure it is firmly supported.
  3. Raise the lift to its full height, and inspect the vehicle support points for solid contact with the lift pads.
