Front/Rear Door Speaker

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door panel:
  2. Remove the bolt (A). Then lift the speaker (B) straight up to release the lower clips (C).
    NOTE: If you pull the speaker out too far from the door, you will damage the lower clips.

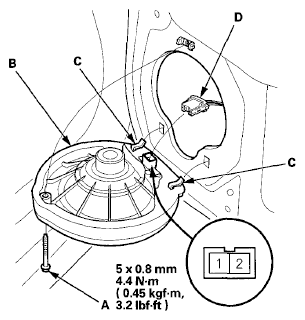

    Fig 1: Releasing Speaker Lower Clips
    G06768866Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 2P connector (D), and remove the speaker.
  4. Measure the resistance between terminals No. 1 and No. 2. There should be about 4 Ω.
  5. If the resistance is not as specified, replace the door speaker.
