Valve Body and ATF Strainer Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ATF feed pipe (A) from the regulator valve body (B).

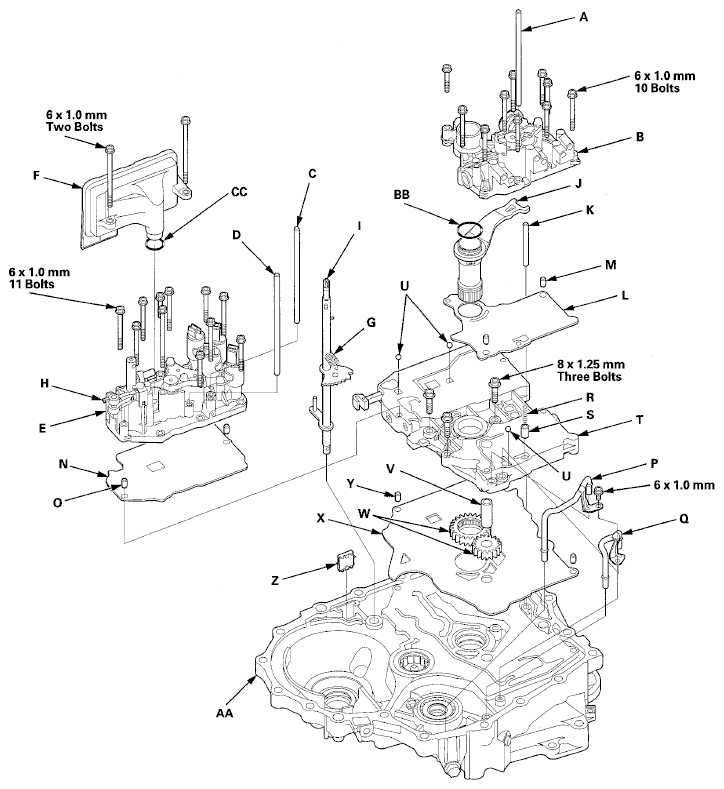

    Fig 1: Removing ATF Feed Pipe From Regulator Valve Body
    G06768628Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the ATF feed pipes (C) (D) from the servo body (E).
  3. Remove the ATF strainer (F) (two bolts).
  4. Unhook the detent spring (G) from the detent arm (H), and remove the control shaft (I).

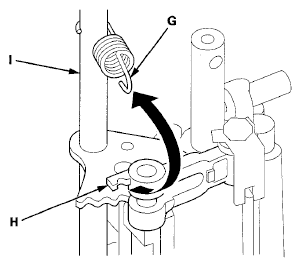

    Fig 2: Removing Control Shaft
    G06768629Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the regulator valve body (10 bolts).
  6. Remove the stator shaft (J) and stator shaft stop (K), then remove the regulator separator plate (L) and two dowel pins (M).
  7. Remove the servo body (11 bolts), then remove the separator plate (N) and two dowel pins (0).
  8. Remove the ATF joint pipes (P) (Q).
  9. Remove the cooler check valve spring (R) and cooler check valve (S), then remove the main valve body (T) (three bolts). Do not let the check balls (U) fall out.
  10. Remove the ATF pump driven gear shaft (V), then remove the ATF pump gears (W).
  11. Remove the main separator plate (X) and two dowel pins (Y).
  12. Remove the ATF magnet (Z), clean and reinstall it in the torque converter housing (AA).
  13. Remove the O-ring (BB) from the stator shaft, and remove the O-ring (CC) from the ATF strainer. Install new ones when installing the valve bodies.
  14. Clean the inlet opening (A) of the ATF strainer (B) thoroughly with compressed air, then check that it is in good condition and that the inlet opening is not clogged.

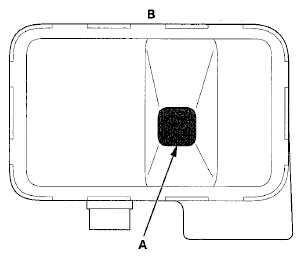

    Fig 3: Cleaning Inlet Opening Of Atf Strainer
    G06768630Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Test the ATF strainer by pouring clean ATF through the inlet opening, and replace it if it is clogged or damaged.
