Shift Solenoid Valve Removal and Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not hold the solenoid valve connector to remove and install the solenoid valve. Be sure to hold the solenoid valve body.

Remove the mounting bolts, then remove the solenoid valves by holding the solenoid valve body.
Install new O-rings (E) on each solenoid valve.
NOTE: A new solenoid valve comes with new O-rings. If you install a new solenoid valve, use the O-rings provided with it.

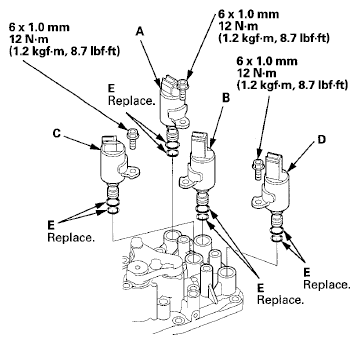

Fig 1: Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install shift solenoid valve D (black connector) by holding the shift solenoid valve body; be sure the mounting bracket contacts to the servo body.
Install shift solenoid valve C (brown connector) by holding the shift solenoid valve body; be sure the mounting bracket contacts to the servo body.
Install shift solenoid valve B (black connector) by holding the shift solenoid valve body; be sure the mounting bracket contacts to the servo body.
Install shift solenoid valve A (brown connector) by holding the shift solenoid valve body; be sure the mounting bracket contacts to the bracket of shift solenoid valve B.
NOTE: Do not install shift solenoid valve A before installing shift solenoid valve B. If shift solenoid valve A is installed before installing shift solenoid valve B, it may damage the hydraulic control system.
