Reverse Idler Gear Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolts (A) securing the reverse idler gear shaft holder (B).

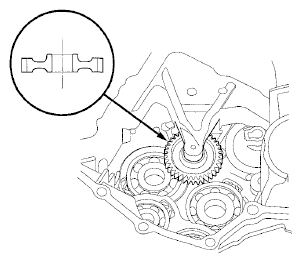

Fig 1: Identifying Bolts Securing Reverse Idler Gear Shaft Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a 5 x 0.8 mm bolt (C) in the reverse gear shaft, and pull it to remove the reverse idler gear shaft (D) and the gear shaft holder together.
Remove the reverse idler gear.

Fig 2: Installing Bolt In Reverse Gear Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
