Reverse Idler Gear Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

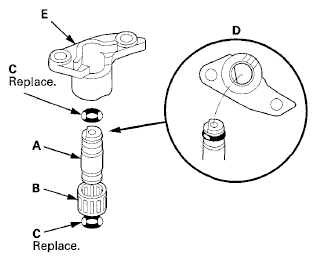

Lightly coat the reverse idler gear shaft (A), the needle bearing (B), and new O-rings (C) with lithium grease.

Fig 1: Coating Reverse Idler Gear Shaft, Needle Bearing, And New O-Rings With Lithium Grease
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Assemble the new O-rings and the needle bearing on the reverse idler gear shaft, then install the reverse idler gear shaft in the reverse idler gear shaft holder (E). Align the D-shaped cut out of the shaft with the D-shaped area of the holder.

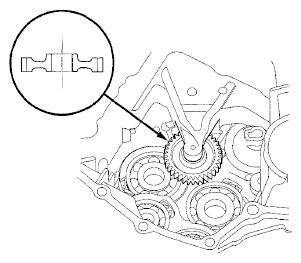

Install the reverse idler gear in the transmission housing in the direction shown.

Fig 2: Installing Reverse Idler Gear In Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

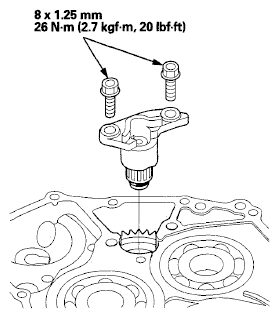

Install the reverse idler gear shaft/holder assembly in the reverse idler gear.

Fig 3: Installing Reverse Idler Gear Shaft/Holder Assembly In Reverse Idler Gear With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Secure the holder with the bolts.
