Idler Gear Shaft Removal and Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the snap ring (A), the cotter retainer (B), and the cotters (C) from the idler gear shaft (D), then remove the idler gear shaft. Do not distort the snap ring.

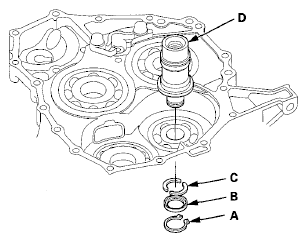

    Fig 1: Removing Snap Ring, Cotter Retainer, And Cotters From Idler Gear Shaft
    G06768622Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check the snap ring and the cotter retainer for wear and damage. Replace the snap ring and/or the cotter retainer if the snap ring or the cotter retainer is worn, distorted, or damaged.
  3. Install the idler gear shaft in the idler gear shaft bearing.
  4. Install the cotters and cotter retainer, and secure the idler gear shaft with the snap ring.
