Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a lift, or apply the parking brake, block rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
Remove the splash shield.

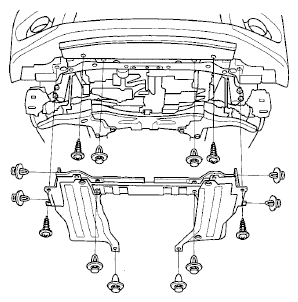

Fig 1: Removing Splash Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the transmission fluid pressure switch B (3rd clutch) connector, then remove the transmission fluid pressure switch B (3rd clutch) (A).

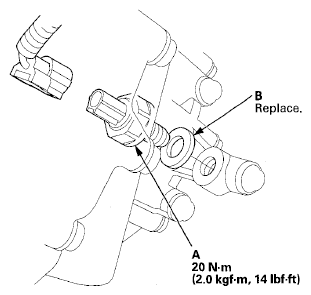

Fig 2: Removing Transmission Fluid Pressure Switch B (3rd Clutch) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new transmission fluid pressure switch B (3rd clutch) with a new sealing washer (B), and tighten the metal part of the switch.
Make sure there is no water, oil, dust, or foreign particles inside the connector.
Connect the connector securely.
Install the splash shield.

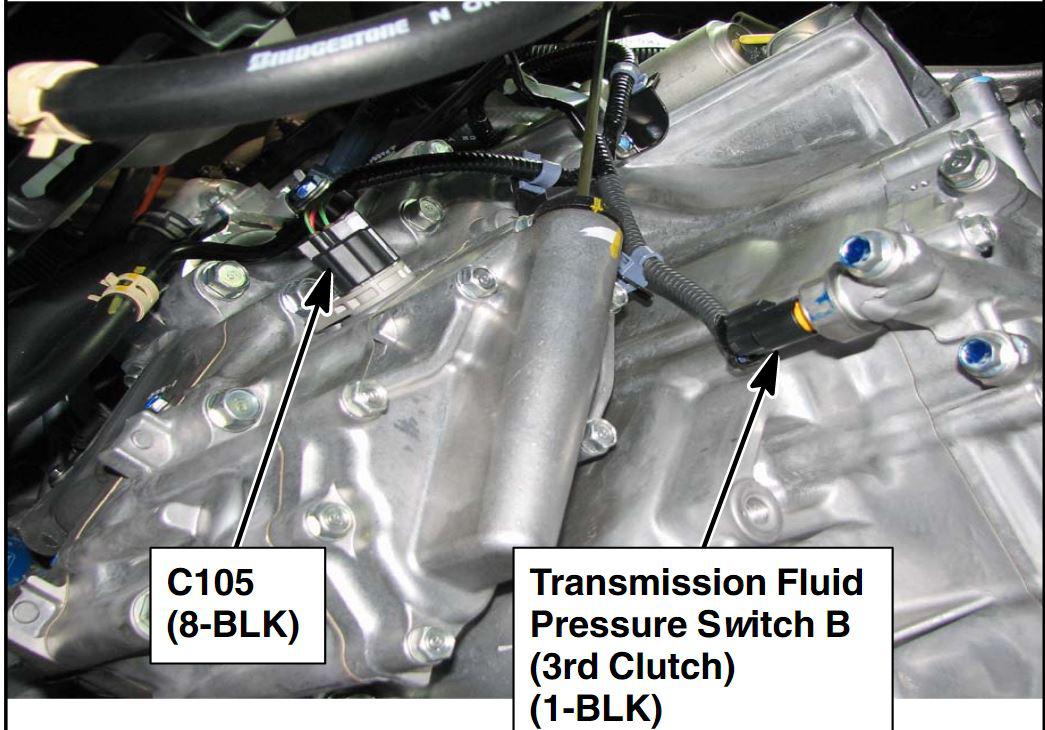

Fig 3: Transmission Fluid Pressure Switch B (3rd Clutch) Component Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.
