Transmission Fluid Pressure Switch A (2nd Clutch) Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the transmission fluid pressure switch A (2nd clutch) connector, and remove the transmission fluid pressure switch A (2nd clutch) (A).

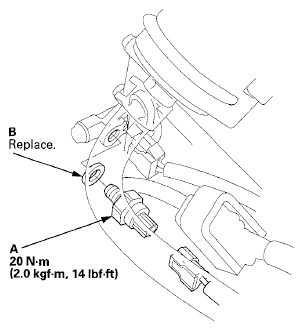

    Fig 1: Removing Transmission Fluid Pressure Switch A (2nd Clutch) With Torque Specifications
    G06768449Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the new transmission fluid pressure switch A (2nd clutch) with a new sealing washer (B), and tighten the metal part of the switch.
  4. Make sure there is no water, oil, dust, or foreign particles inside the connectors.
  5. Connect the connector securely.
  6. Install the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).

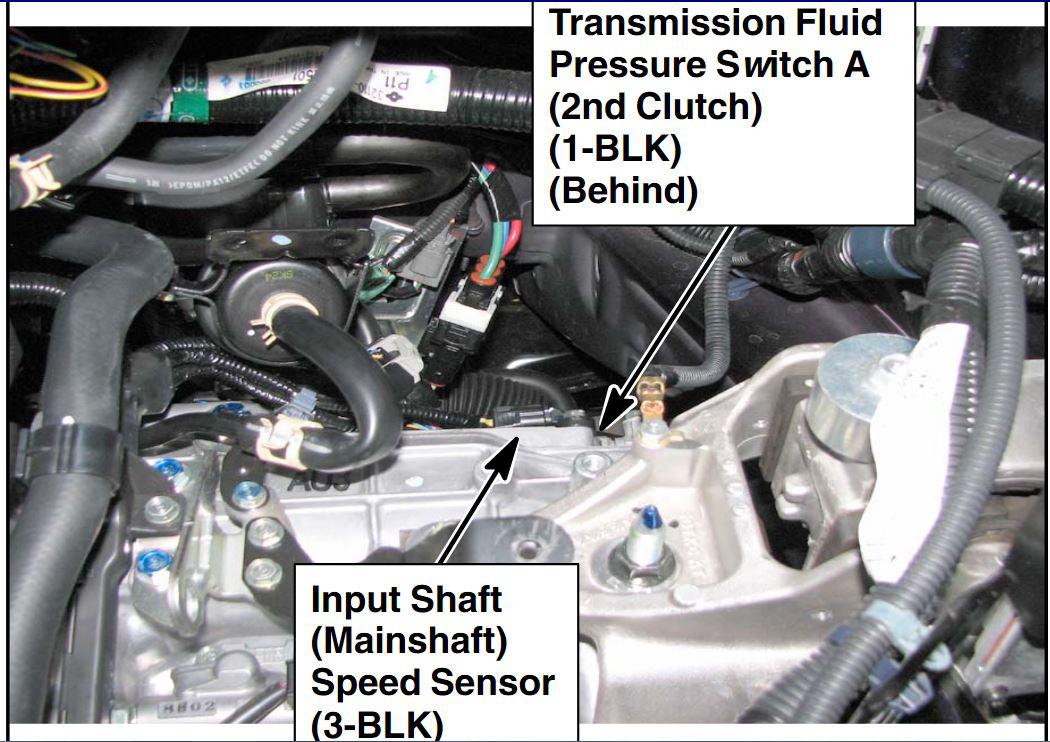

Fig 2: Transmission Fluid Pressure Switch A (2nd Clutch) Component Location
G00571368Courtesy of AMERICAN HONDA MOTOR CO., INC.
