Selector Control Shaft Oil Seal Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Driver Handle, 15 x 135L 07749-0010000
Attachment, 22 x 24 mm 07746-0010800

Remove the oil seal from the end cover.

Fig 1: Removing Oil Seal From End Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

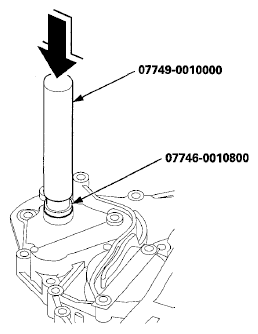

Install the new oil seal flush with the end cover using the driver handle and the attachment (22 x 24 mm).

Fig 2: Installing Oil Seal Flush With End Cover Using Driver Handle And Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
