Park Lever Stop Inspection and Adjustment

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Set the park lever in the P position.
Measure the center-to-center distance (A) between the park pawl shaft (B) and the park lever roller pin (C).
Standard: 37.8-38.8 mm (1.49-1.53 in)

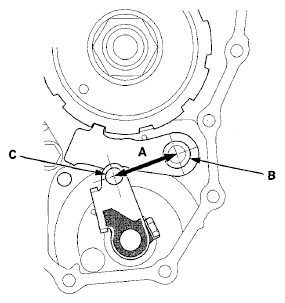

Fig 1: Measuring Center-To-Center Distance Between Park Pawl Shaft And Park Lever Roller Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.

If the measurement is out of standard, select and install the appropriate park lever stop (A) from the table.

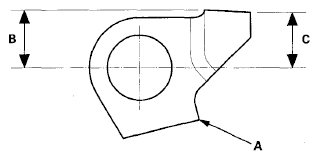

Fig 2: Identifying Measurement For Appropriate Park Lever

Courtesy of AMERICAN HONDA MOTOR CO., INC.

PARK LEVER STOP

REFERENCE CHART

Mark	B	C
1	11.00 mm (0.433 in)	11.00 mm (0.433 in)
2	10.80 mm (0.425 in)	10.65 mm (0.419 in)
3	10.60 mm (0.417 in)	10.30 mm (0.406 in)

After replacing the park lever stop, make sure the distance is within tolerance.
