Idler Gear Shaft Bearing Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Adjustable Bearing Puller, 25-40 mm 07736-A01000B
Driver Handle, 15 x 135L 07749-0010000
Attachment, 52 x 55 mm 07746-0010400

Remove the idler gear shaft bearing from the end cover using the adjustable bearing puller (20-40 mm) and a commercially available 3/8 "-16 slide hammer (A).

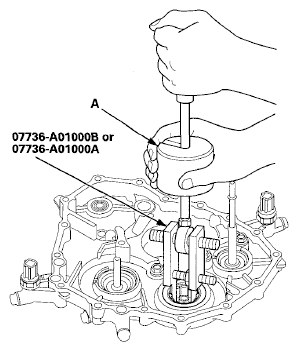

Fig 1: Removing Idler Gear Shaft Bearing From End Cover Using Adjustable Bearing Puller
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new bearing in the end cover using the driver handle and the attachment (52 x 55 mm).

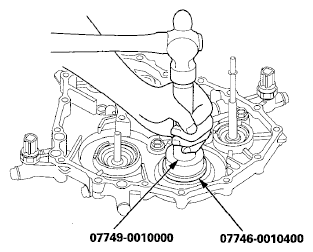

Fig 2: Installing Bearing In End Cover Using Driver Handle And Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
