Air Check Valve Inspection and Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

There are two types of the transmission end cover; the type A and the type B; and both types are available.
The differences between the types A and B of the end covers are:
The installation position of the air check valves.

Check the air check valve filter for clogging. If the filter is clogged, remove the air check valves (A), and clean the filter thoroughly by pouring new ATF. Do not blow out the filter with compressed air. If the filter or check valve (ball) is clogged or damaged, replace the air check valve.
NOTE:
- Replace the sealing washer with a new one whenever the air check valve (came with the sealing washer) is removed or replaced.
- It is no need to install the sealing washer with the air check valve that came without the washer.

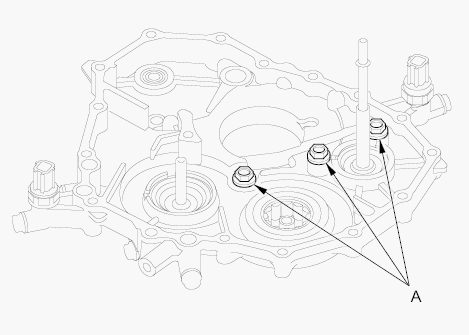

Fig 1: Identifying End Cover And Air Check Valves
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the air check valve (A):
- On type A end cover: Install the air check valve and a new sealing washer (B).
- On type B end cover: Install the air check valve. Do not install the sealing washer.

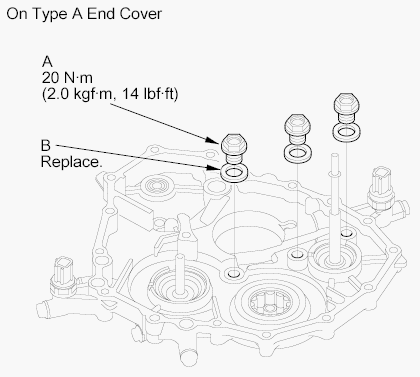

Fig 2: Type A End Cover And Air Check Valves With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

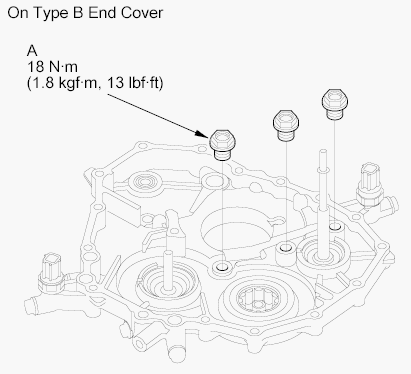

Fig 3: Type B End Cover And Air Check Valves With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the classification of the end cover between types A and B is uncertain, measure the clearance (A) between surface (B) of the end cover and installed position (C) of the 2nd check valve with a straight edge (D) and a feeler gauge (E), and determine the end cover of A or B with the measurement.
Measurement:

Type A End Cover: 2.00 mm (0.078 in)

Type B End Cover: 0.15 mm (0.005 in)

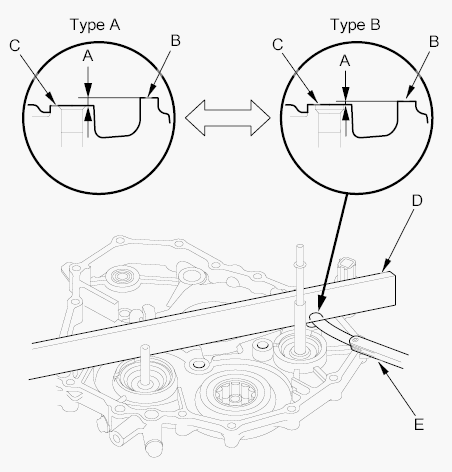

Fig 4: Determining End Cover Type A Or B With Measurements
Courtesy of AMERICAN HONDA MOTOR CO., INC.
