Selector Control Shaft Oil Seal Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Driver Handle, 15 x 135L 07749-0010000
Oil Seal Driver Attachment 07947-ZV00100

Remove the oil seal from the torque converter housing.

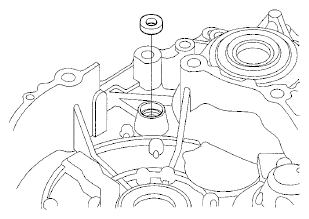

Fig 1: Removing Oil Seal From Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new oil seal (A) in the torque converter housing to a depth (B) of 0.5-1.5 mm (0.02-0.06 in) below the housing surface using the driver handle and the oil seal driver attachment.

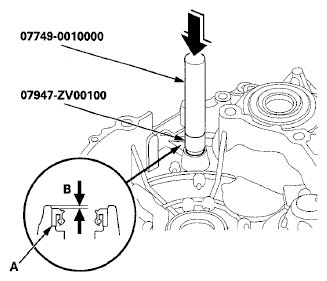

Fig 2: Installing Oil Seal In Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
