Mainshaft Bearing and Oil Seal Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Adjustable Bearing Puller, 25-40 mm 07736-A01000B
Driver Handle, 15 x 135L 07749-0010000
Attachment, 62 x 68 mm 07746-0010500
Attachment, 72 x 75 mm 07746-0010600

Remove the mainshaft bearing and oil seal using the adjustable bearing puller (20-40 mm) and a commercially available 3/8 "-16 slide hammer (A).

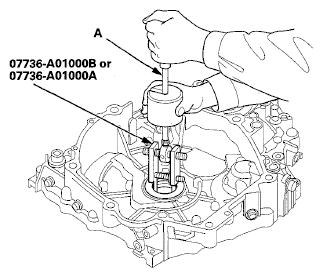

Fig 1: Removing Mainshaft Bearing And Oil Seal Using Adjustable Bearing Puller
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new mainshaft bearing until it bottoms in the torque converter housing using the driver handle and the attachment (62 x 68 mm).

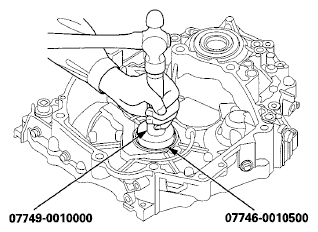

Fig 2: Installing Mainshaft Bearing In Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new oil seal flush with the housing using the driver handle and the bearing driver attachment (72 x 75 mm).

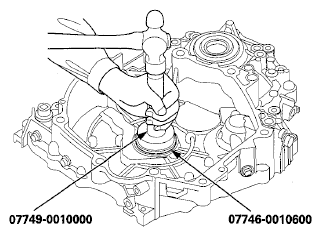

Fig 3: Installing New Oil Seal Flush With Housing Using Driver Handle And Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
