Lubrication Check Valve Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sealing bolt (A) and the sealing washer (B).

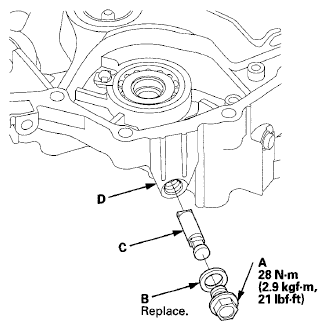

    Fig 1: Removing Sealing Bolt And Sealing Washer With Torque Specifications
    G06768651Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the lubrication check valve (C) from the torque converter housing (D).
  3. Install the lubrication check valve, a new sealing washer, and the sealing bolt.
