Countershaft Bearing Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Adjustable Bearing Puller, 25-40 mm 07736-A01000B
Driver Handle, 15 x 135L 07749-0010000
Oil Seal Driver Attachment 07JAD-PH80101

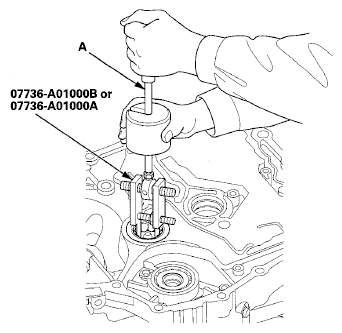

Remove the countershaft bearing using the adjustable bearing puller (20-40 mm) and a commercially available 3/8 "-16 slide hammer (A).

Fig 1: Removing Countershaft Bearing Using Adjustable Bearing Puller
Courtesy of AMERICAN HONDA MOTOR CO., INC.

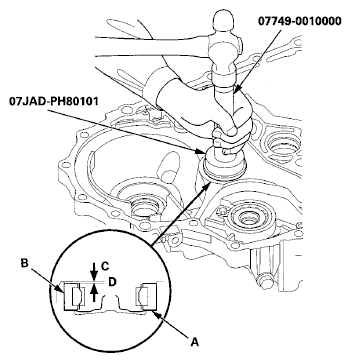

Install the ATF guide plate (A).

Fig 2: Installing Atf Guide Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new countershaft bearing (B) in the housing using the driver handle and the attachment (62 x 68 mm); install the bearing outer race surface in height (C) of 0-0.03 mm (0-0.001 in) above the housing surface (D). Do not install the bearing exceeding 0.03 mm (0.001 in) high from housing surface.
