In 2nd Gear and 2 Position

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Hydraulic pressure is applied to the 2nd clutch, then the 2nd clutch engages the secondary shaft 2nd gear with the secondary shaft.
The mainshaft idler gear drives the secondary shaft via the idler gear shaft idler gear and the secondary shaft idler gear.
The secondary shaft 2nd gear drives the countershaft 2nd gear and the countershaft.
Power is transmitted to the final drive gear, which in turn drives the final driven gear.

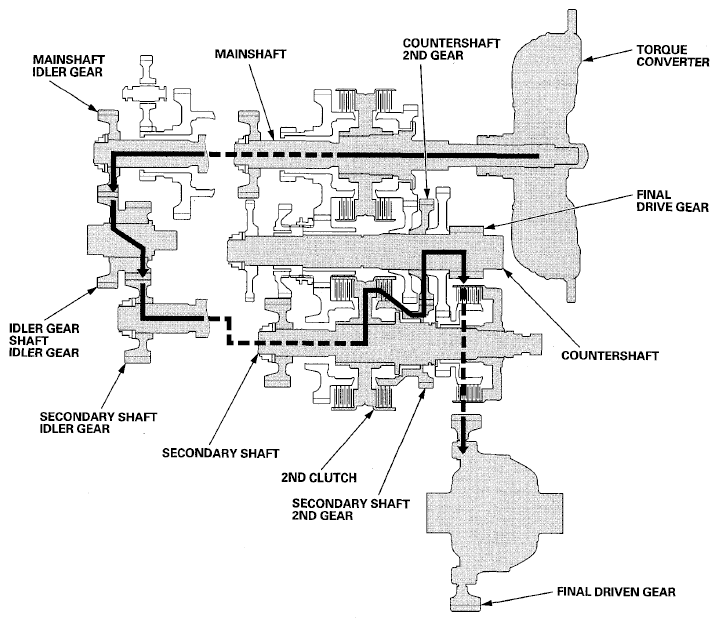

Fig 1: Power Flow - In 2Nd Gear And 2 Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
