R Position: Shifting to the R position from the P or N position

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

When shifting into R from P or N, line pressure (1) becomes line pressure (1), (3), and (7) at the manual valve. The PCM turns shift solenoid valve D ON, and shift solenoid valves A, B, and C OFF. Shift solenoid valve D pressure (SD) is applied to the left end of shift valve D, and shift valve D is moved to the right side to uncover the line pressure port (3) leading to the servo valve. Line pressure (3') from shift valve D flows to the servo valve, and pushes the servo valve to the reverse position. The PCM controls A/T clutch pressure control solenoid valve A to regulate A/T clutch pressure control solenoid valve A pressure (55), and A/T clutch pressure control solenoid valve A pressure (55) flows to the lock-up shift valve, shift valve B, the manual valve, the servo valve, shift valve D, and cut valve A. A/T clutch pressure control solenoid valve A pressure (3C) becomes 5th clutch pressure (50) at cut valve A. 5th clutch pressure (50) is applied to the 5th clutch, and the 5th clutch is engaged with the A/T clutch pressure control solenoid valve A pressure.

NOTE:

When used, "left" or "right" indicates direction on the hydraulic circuit.
The illustration shows the seven-position transmission; the manual-valve-position differs in the five-position transmission.

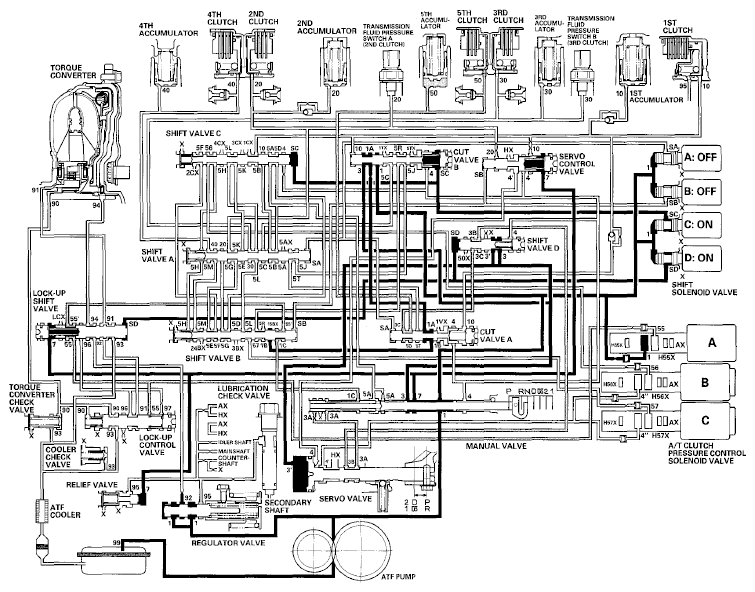

Fig 1: Hydraulic Flow - R Position: Shifting To R Position From P Or N Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.
