N Position
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
The PCM controls the shift solenoid valves. The conditions of the shift solenoid valves and the positions of the shift valves are as follows:
- Shift solenoid valve A is turned OFF, shift valve A stays on the right side, and cut valve A stays on the left side.
- Shift solenoid valve B is turned OFF, and shift valve B stays on the right side.
- Shift solenoid valve C is turned OFF, and shift valve C stays on the right side.
Line pressure (1) passes through the manual valve and stops at cut valve B. Line pressure (1) also flows to the shift solenoid valves and A/T clutch pressure control solenoid valve A. Under this condition, hydraulic pressure is not applied to the clutches.
NOTE:
- When used, "left" or "right" indicates direction on the hydraulic circuit.

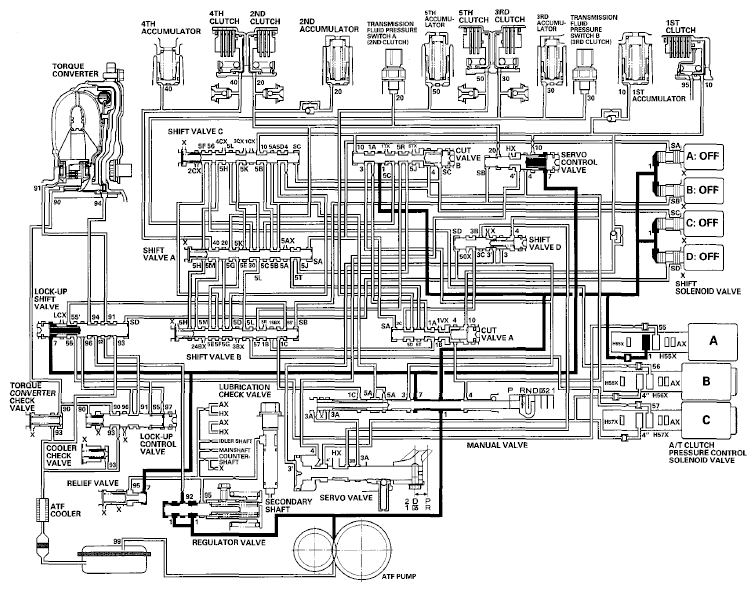

- The illustration shows the seven-position transmission; the manual-valve-position differs in the five-position transmission.
