D Position: Shifting between 4th gear and 5th gear
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

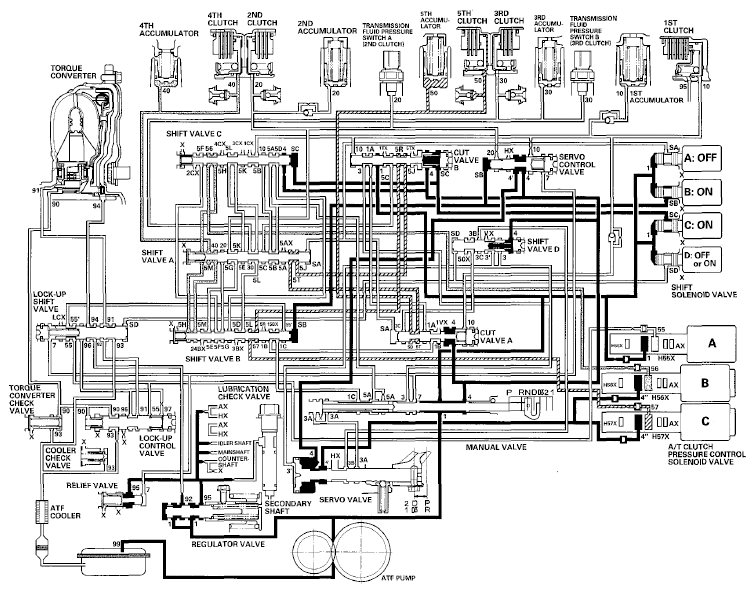

As the speed of the vehicle reaches the programmed value, the PCM turns shift solenoid valve A OFF. Shift solenoid valves B and C remain ON. Shift solenoid valve A pressure (SA) in the right end of shift valve A is released. Cut valve A is kept in the right side by line pressure (4) even though shift solenoid valve A pressure (SA) is released. Shift valve A is moved to the right side to uncover the A/T clutch pressure control solenoid valve C pressure ports (5T) (5J) leading to the 4th clutches. The 4th and 5th clutches are engaged by the A/T clutch pressure control solenoid valve pressure.
NOTE:
- When used, "left" or "right" indicates direction on the hydraulic circuit.
- The illustration shows the seven-position transmission; the manual-valve-position differs in the five-position transmission.
