D Position: Driving in 5th gear
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

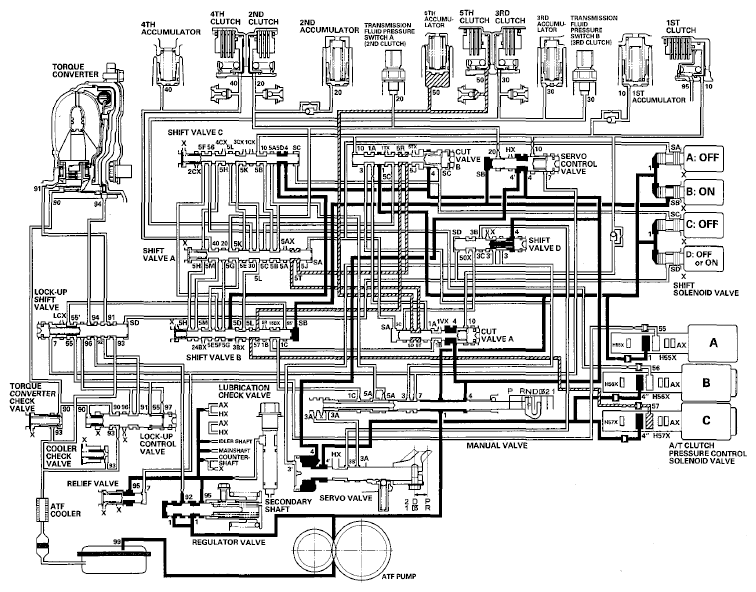

The PCM turns shift solenoid valve C OFF, shift solenoid valve A remains OFF, and shift solenoid valve B remains ON. Shift solenoid valve C pressure (SC) in the right end of shift valve C is released. Shift valve C is moved to the right side to release 4th clutch pressure. The 5th clutch stays engaged with the A/T clutch pressure control solenoid valve C pressure.
NOTE:
- When used, "left" or "right" indicates direction on the hydraulic circuit.
- The illustration shows the seven-position transmission; the manual-valve-position differs in the five-position transmission.
