2 Position (Seven-position Transmission)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
The PCM controls the shift solenoid valves and the A/T clutch pressure control solenoid valves. The conditions of the shift solenoid valves and the position of the shift valves are as follows:
- Shift solenoid valve A is turned ON, and shift valve A is moved to the left side.
- Shift solenoid valve B is turned OFF, and shift valve B is in the right side.
- Shift solenoid valve C is turned OFF, and shift valve C is in the left side.
Line pressure (4) from the manual valve becomes 2nd clutch pressure (20) at shift valve A, via shift valves C and B. 2nd clutch pressure (20) is applied to the 2nd clutch, and the 2nd clutch is engaged.
NOTE:
- When used, "left" or "right" indicates direction on the hydraulic circuit.

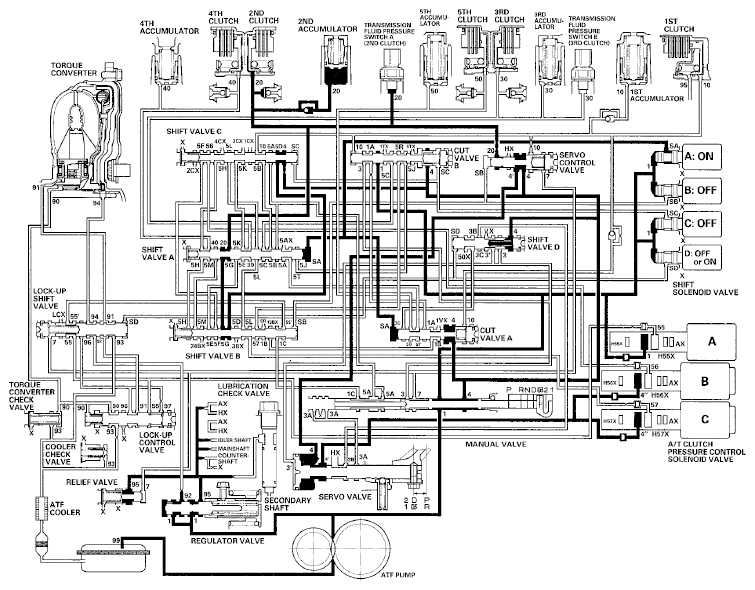

- The illustration shows the seven-position transmission; the five-position transmission does not have position 2.
