Servo Body

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

The servo body is on the main valve body. The servo body contains the servo valve, shift valve B, cut valve A, accumulators for 2nd, 3rd, and 5th, and shift solenoid valves A, B, C, and D.

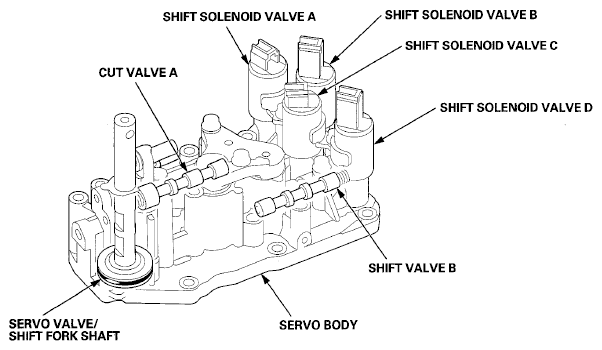

Fig 1: Identifying Servo Body Components
G06768312Courtesy of AMERICAN HONDA MOTOR CO., INC.
