Regulator Valve Body

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

The regulator valve body is located on the main valve body. The regulator valve body contains the regulator valve, the torque converter check valve, the lock-up shift valve, the 1st accumulator, and the 4th accumulator.

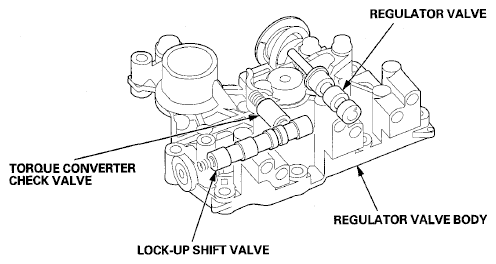

Fig 1: Identifying Regulator Valve Body Components
G06768309Courtesy of AMERICAN HONDA MOTOR CO., INC.
