Circuit Diagram - PCM A/T Control System - Seven-position Transmission

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

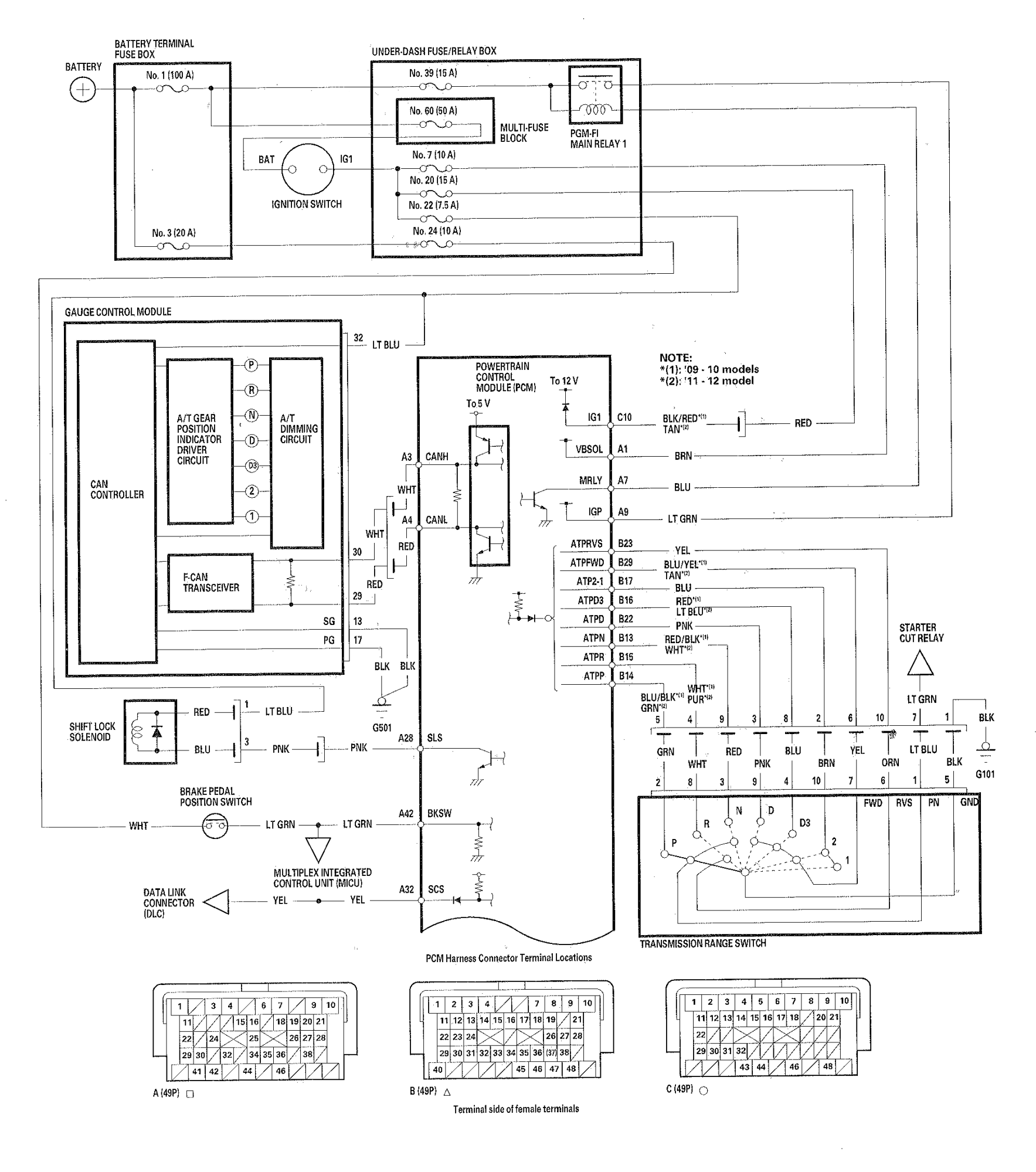

Fig 1: PCM A/T Control System - Seven-Position Transmission Circuit Diagram (1 Of 2)
G06768335Courtesy of AMERICAN HONDA MOTOR CO., INC.

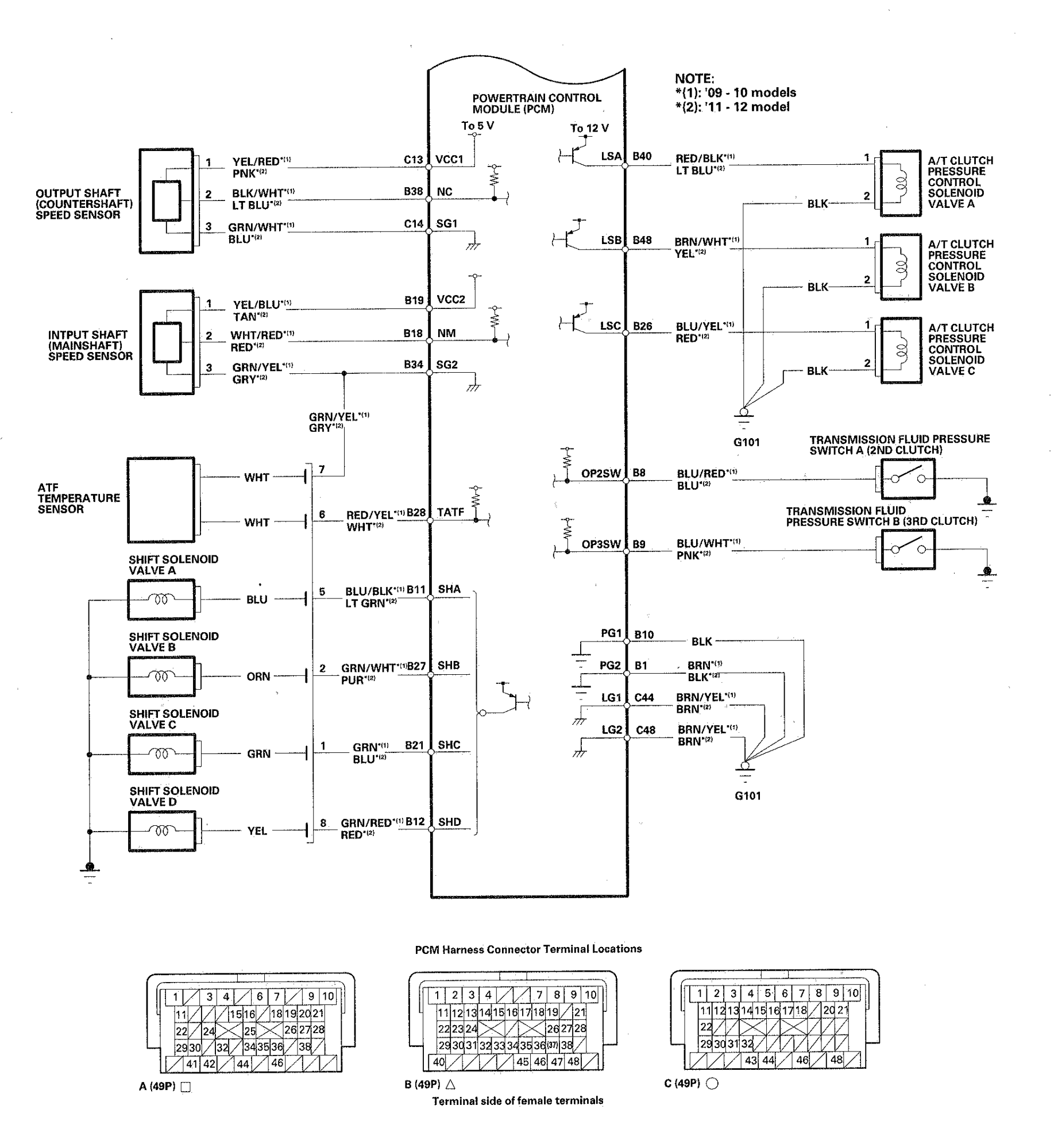

Fig 2: PCM A/T Control System - Seven-Position Transmission Circuit Diagram (2 Of 2)
G06768336Courtesy of AMERICAN HONDA MOTOR CO., INC.
