Shift Solenoid Valve and Shift Solenoid Wire Harness Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift, or apply the parking brake, block rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
  2. Remove the splash shield.

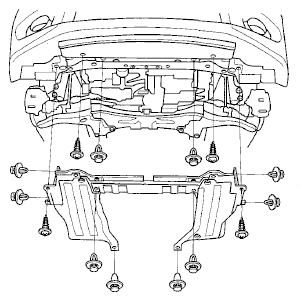

    Fig 1: Removing Splash Shield
    G06768423Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

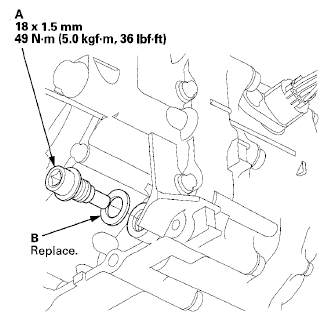

    Fig 2: Drain Plug With Torque Specifications
    G06768424Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Reinstall the drain plug with a new sealing washer (B).
  5. Disconnect the shift solenoid harness connector (A).

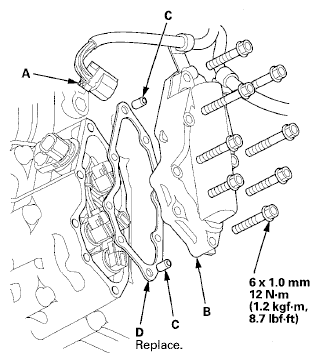

    Fig 3: Disconnecting Shift Solenoid Harness Connector With Torque Specifications
    G06768425Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the shift solenoid valve cover (B), the dowel pins (C), and the gasket (D).
  7. Disconnect the shift solenoid valve connectors.
    • If replacing shift solenoid valve(s), go to step 8.
    • If replacing the shift solenoid harness, remove the shift solenoid harness connector (A), and replace it. Install a new O-ring (B) on the new shift solenoid harness connector, and install it in the transmission housing, then go to step  13.

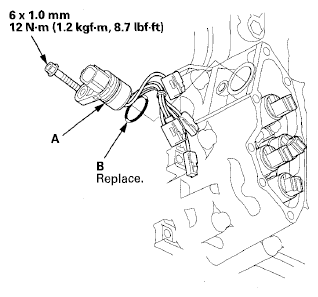

      Fig 4: Removing Shift Solenoid Harness Connector With Torque Specifications
      G06768426Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the mounting bolts, then hold the solenoid valve body and remove the solenoid valves. Do not hold the connector to remove the solenoid valve.

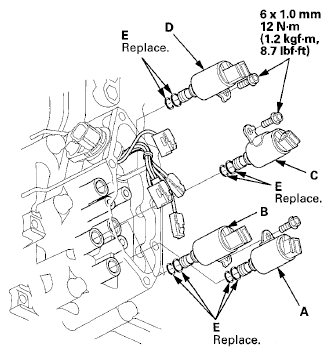

    Fig 5: Removing Solenoid Valves With Torque Specifications
    G06768427Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install new O-rings (two O-rings per solenoid valve) (E) on the reused solenoid valve.
    NOTE: A new solenoid valve comes with new O-rings. If you install a new solenoid valve, use the O-rings provided on it.
  10. Install shift solenoid valve D (black connector) and shift solenoid valve C (brown connector) by holding the shift solenoid valve body; make sure the mounting bracket contacts the servo body.
    NOTE: Do not hold the solenoid valve connector to install the solenoid valve. Be sure to hold the solenoid valve body.
  11. Install shift solenoid valve B (black connector) by holding the solenoid valve body; make sure the mounting bracket contacts the servo body.
  12. Install shift solenoid valve A (brown connector) by holding the shift solenoid valve body; make sure the mounting bracket contacts the bracket of shift solenoid valve B.
    NOTE: Do not install shift solenoid valve A before installing shift solenoid valve B. If shift solenoid valve A is installed before installing shift solenoid valve B, it may damage the hydraulic control system.
  13. Connect the harness terminals to the solenoids:
    • BLU wire connector to shift solenoid valve A.
    • ORN wire connector to shift solenoid valve B.
    • GRN wire connector to shift solenoid valve C.
    • YEL wire connector to shift solenoid valve D.
  14. Install the shift solenoid valve cover, the dowel pins, and a new gasket.
  15. Check the connector for rust, dirt, or oil, then connect the connector
  16. Refill the transmission with ATF (see (see step  6 ).
  17. Install the splash shield.
