Shift Lever Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Shift the transmission to N.
  3. Remove the nut securing the shift cable end.
    Fig 1: Identifying Nut Securing Shift Cable End
    G06768528Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Rotate the socket holder (A) on the shift cable (B) a quarter turn; the corner (C) on the socket holder will be in the opening (D) of the shift lever bracket base (E). Then slide the holder to remove the shift cable from the bracket. Do not remove the shift cable by twisting the shift cable guide (F).

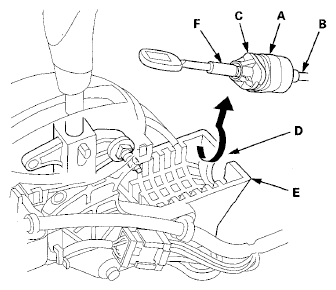

    Fig 2: Removing Shift Cable By Twisting Shift Cable Guide
    G06768529Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the shift lock solenoid/park pin switch/A/T gear position indicator panel light connector (A), and remove the harness clamps (B) from the shift lever bracket base.

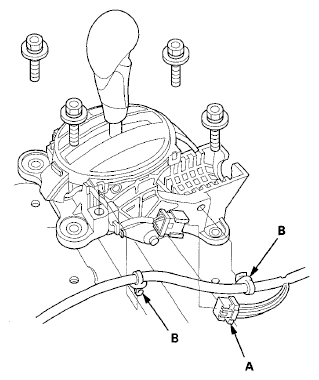

    Fig 3: Removing Harness Clamps From Shift Lever Bracket Base
    G06768530Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the mounting bolts, then remove the shift lever assembly.
