Countershaft Reverse Selector Hub Installation
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required
Driver Handle, 40 mm I.D. 07746-0030100
- Install 1st gear, 2nd gear, 3rd gear, the 33.2 x 40 x 26 mm collar, the 29 mm cotters, and the 33 x 45 x 7.8 mm collar on the countershaft, and secure them with the snap ring.
- Install the needle bearings and the 4th-5th gear.

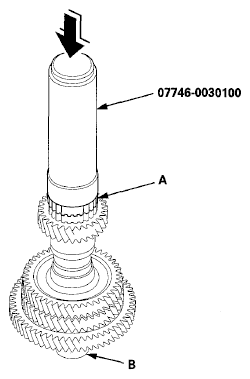

- Slide the reverse selector hub (A) over the countershaft (B), then press it in place using the driver handle (40 mm I.D.) and a press.NOTE: Some reverse selector hubs are not press-fitted, and can be installed without using the a press.
