Clutch Wave-plate Phase Difference Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Place the clutch wave-plate (A) on a surface plate, and set a dial indicator (B) on the wave-plate.

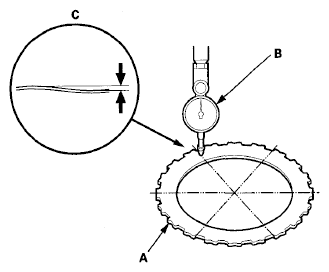

Fig 1: Placing Clutch Wave-Plate On Surface Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Find the bottom (C) of a phase difference of the wave-plate, zero the dial indicator, and make a reference mark on the bottom of the wave-plate,
Measure the phase differences of 1st clutch wave-plates.
1. Rotate the clutch wave-plate about 5 or 6 tooth while holding the wave-plate by its circumference. The dial indicator should be at the top of a phase difference. Do not rotate the wave-plate while holding its surface, always rotate it by holding its circumference.
2. Read the dial indicator. The dial indicator reads the phase difference of the wave-plate between the bottom and top.
  Standard: 0.07-0.20 mm (0.003-0.008 in)
3. Rotate the clutch wave-plate about 5 or 6 tooth. The dial indicator should be at the bottom of a phase difference. Zero the dial indicator.
4. Measure the phase difference at the other two tops of the wave-plate by following steps -1 thru -3.
Measure the phase differences of 3rd and 5th clutch wave-plates.
1. Rotate the clutch wave-plate about 60 degrees while holding the wave-plate by its circumference. The dial indicator should be at the top of a phase difference. Do not rotate the wave-plate while holding its surface, always rotate it by holding its circumference.
2. Read the dial indicator. The dial indicator reads the phase difference of the wave-plate between the bottom and top.
  Standard: 0.07-0.20 mm (0.003-0.008 in)
3. Rotate the clutch wave-plate another 60 degrees. The dial indicator should be at the bottom of a phase difference. Zero the dial indicator.
4. Measure the phase difference at the other two tops of the wave-plate by following steps-1 thru -3.
If two of the three measurements are within the standard, the wave-plate is OK. If two of the three measurements are out of the standard, replace the wave-plate.
