Clutch Disassembly

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Clutch Spring Compressor Set 07LAE-PX40000

  1. Remove the snap ring with a screwdriver.
    Fig 1: Removing Snap Ring With A Screwdriver
    G06768671Courtesy of AMERICAN HONDA MOTOR CO., INC.

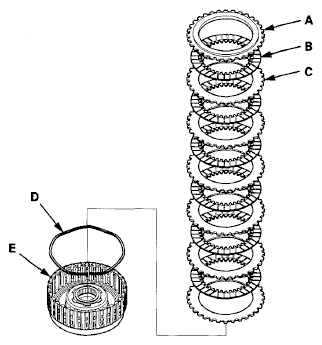

  2. Remove the clutch end-plate (A), the clutch discs (B) (6), the clutch wave-plates (C) (6), and the wave spring (D) from the 1st clutch drum (E).
    Fig 2: Removing Clutch End-Plate, Clutch Discs, Clutch Wave-Plates, And Wave Spring From 1St Clutch Drum
    G06768672Courtesy of AMERICAN HONDA MOTOR CO., INC.

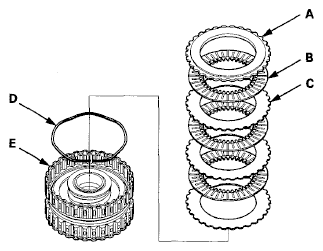

  3. Remove the clutch end-plate (A), the clutch discs (B) (3), the clutch flat-plates (C) (3), and the wave spring (D) from the 2nd clutch drum (E).
    Fig 3: Removing Clutch End-Plate, Clutch Discs, Clutch Flat-Plates, And Wave Spring From 2Nd Clutch Drum
    G06768673Courtesy of AMERICAN HONDA MOTOR CO., INC.

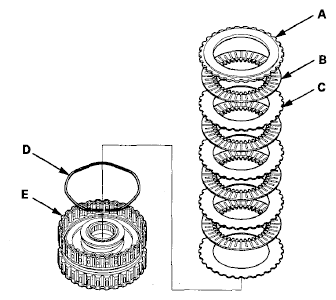

  4. Remove the clutch end-plate (A), the clutch discs (B) (4), the clutch flat-plates (C) (4), and the wave spring (D) from the 4th clutch drum (E).
    Fig 4: Removing Clutch End-Plate (A), Clutch Discs (B) (4), Clutch Flat-Plates
    G06768674Courtesy of AMERICAN HONDA MOTOR CO., INC.

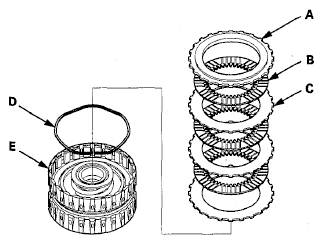

  5. Remove the clutch end-plate (A), the clutch discs (B) (3), the clutch wave-plates (C) (3), and the wave spring (D) from the 4th clutch drum (E).
    Fig 5: Removing Clutch End-Plate, Clutch Discs, Clutch Wave-Plates
    G06768675Courtesy of AMERICAN HONDA MOTOR CO., INC.

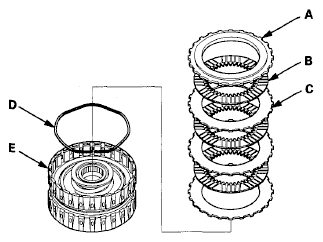

  6. Remove the clutch end-plate (A), the clutch discs (B) (3), the clutch wave-plates (C) (3), and the wave spring (D) from the 5th clutch drum (E).
    Fig 6: Removing Clutch End-Plate, Clutch Discs, Clutch Wave-Plates
    G06768676Courtesy of AMERICAN HONDA MOTOR CO., INC.

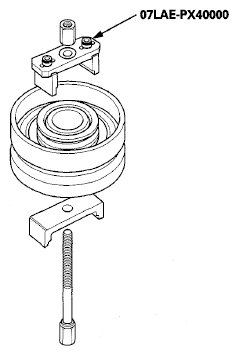

  7. Install the clutch spring compressor set.
    Fig 7: Installing Clutch Spring Compressor Set
    G06768677Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Set the clutch spring compressor attachment (A) on the 1st clutch spring retainer (B) so the clutch spring compressor attachment works on the clutch return spring (C).
    Fig 8: Setting Clutch Spring Compressor Attachment On 1St Clutch Spring Retainer
    G06768678Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. If either end of the clutch spring compressor attachment is not set over the clutch return spring end, the spring retainer may be tilted and damaged. If the retainer is tilted when compressing the return spring, reset the clutch spring compressor attachment on the retainer at another range.
  10. Be sure the clutch spring compressor attachment (A) is adjusted to have full contact with the spring retainer (B) on the 2nd, 3rd, 4th, and 5th clutches, and set either end of the spring compressor attachment over the clutch return spring end.
    Fig 9: Identifying Clutch Spring Compressor Attachment
    G06768679Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Check the placement of the clutch spring compressor attachment. If either end of the clutch spring compressor attachment is set over an area of the spring retainer that is unsupported by the return spring, the spring retainer may be damaged.
    Fig 10: Checking Placement Of Clutch Spring Compressor Attachment
    G06768680Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Compress the return spring until the snap ring can be removed.
    Fig 11: Compressing Return Spring
    G06768681Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove the snap ring with snap ring pliers.
    Fig 12: Removing Snap Ring With Snap Ring Pliers
    G06768682Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Remove the clutch spring compressor set.
  15. Remove the snap ring (A), the spring retainer (B), and the return spring (C).
    Fig 13: Removing Snap Ring, Spring Retainer, And Return Spring
    G06768683Courtesy of AMERICAN HONDA MOTOR CO., INC.

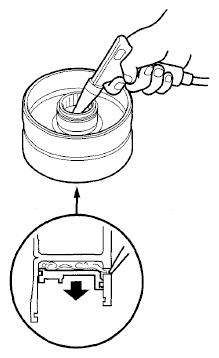

  16. Wrap a shop rag around the clutch drum, and apply air pressure to the fluid passage to remove the piston. Place a finger tip on the other passage while applying air pressure.
    Fig 14: Applying Air Pressure To Fluid Passage
    G06768684Courtesy of AMERICAN HONDA MOTOR CO., INC.

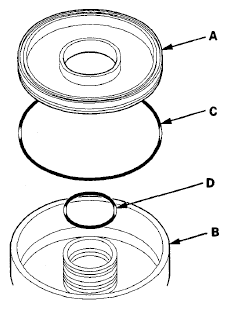

  17. Remove the clutch piston (A) from the clutch drum (B) of the 1st, 2nd, and 4th clutches. Remove the O-ring (C) from the clutch piston, and O-ring (D) from the drum.
    Fig 15: Removing Clutch Piston From Clutch Drum Of 1St, 2Nd, And 4Th Clutches
    G06768685Courtesy of AMERICAN HONDA MOTOR CO., INC.

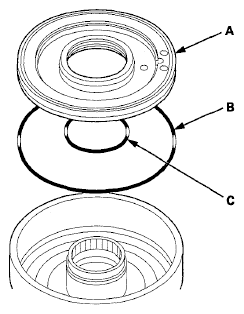

  18. Remove the clutch piston (A) from the clutch drum of the 3rd and 5th clutches, and remove the outer O-ring (B) and inner O-ring (C) from the piston.
    Fig 16: Removing Clutch Piston From Clutch Drum Of 3rd And 5Th Clutches
    G06768686Courtesy of AMERICAN HONDA MOTOR CO., INC.
