2nd, 3rd, 4th, and 5th Clutch Reassembly

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Clutch Spring Compressor Set 07LAE-PX40000

NOTE: Coat all parts with ATF during reassembly.
  1. Soak the clutch discs thoroughly in ATF for a minimum of 30 minutes.

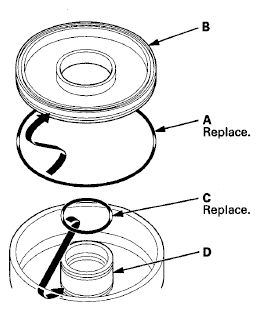

  2. Install a new O-ring (A) on the clutch piston (B) of the 2nd, and 4th clutches, and install a new O-ring (C) on each clutch drum (D).
    Fig 1: Installing O-Ring On Clutch Piston Of 2Nd, And 4Th Clutches
    G06768711Courtesy of AMERICAN HONDA MOTOR CO., INC.

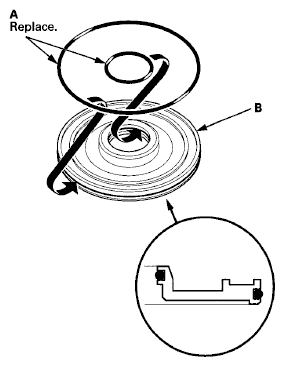

  3. Install new O-rings (A) on the piston (B) of the 3rd and 5th clutches.
    Fig 2: Installing New O-Rings On Piston Of 3rd And 5Th Clutches
    G06768712Courtesy of AMERICAN HONDA MOTOR CO., INC.

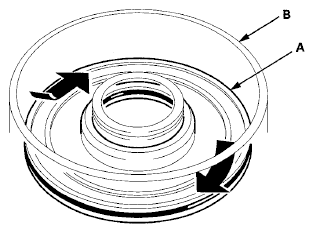

  4. Install the clutch piston (A) in the clutch drum (B) while applying pressure and rotating to ensure proper seating. Do not pinch the O-ring.
    Fig 3: Installing Clutch Piston In Clutch Drum
    G06768713Courtesy of AMERICAN HONDA MOTOR CO., INC.

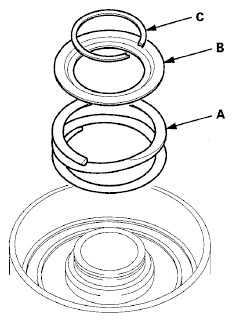

  5. Install the return spring (A) and the spring retainer (B), and position the snap ring (C) on the spring retainer.
    Fig 4: Installing Return Spring And Spring Retainer
    G06768714Courtesy of AMERICAN HONDA MOTOR CO., INC.

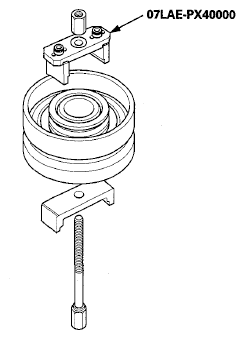

  6. Install the clutch spring compressor set.
    Fig 5: Installing Clutch Spring Compressor Set
    G06768715Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Be sure the clutch spring compressor attachment (A) is adjusted to have full contact with the spring retainer (B), and set either end of the clutch spring compressor attachment over the clutch return spring end.
    Fig 6: Identifying Clutch Spring Compressor Attachment
    G06768716Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Check the placement of the clutch spring compressor attachment. If either end of the clutch spring compressor attachment is set over an area of the spring retainer that is unsupported by the return spring, the spring retainer may be damaged.
    Fig 7: Checking Placement Of Clutch Spring Compressor Attachment
    G06768717Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Compress the return spring until the snap ring can be installed.
    Fig 8: Compressing Return Spring
    G06768718Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install the snap ring with the snap ring pliers.
    Fig 9: Installing Snap Ring With Snap Ring Pliers
    G06768719Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the clutch spring compressor set.

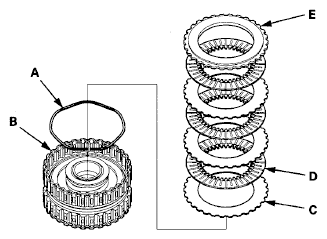

  12. Install the wave spring (A) in the 2nd clutch drum (B). Starting with the clutch flat-plate, alternately install the flat-plates (C) (3) and the discs (D) (3). Install the clutch end-plate (E) with the flat side down on the top disc.
    Fig 10: Installing Clutch End-Plate With Flat Side Down On Top Disc
    G06768720Courtesy of AMERICAN HONDA MOTOR CO., INC.

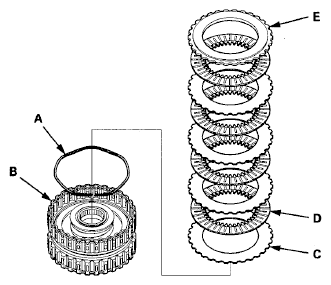

  13. Install the wave spring (A) in the 4th clutch drum (B). Starting with the clutch flat-plate, alternately install the flat-plates (C) (4) and the discs (D) (4). Install the clutch end-plate (E) with the flat side down on the top disc.
    Fig 11: Installing Wave Spring In 4Th Clutch Drum
    G06768721Courtesy of AMERICAN HONDA MOTOR CO., INC.

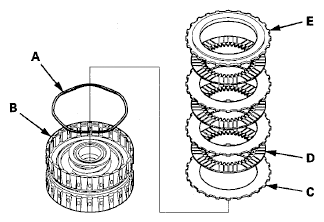

  14. Install the wave spring (A) in the 3rd clutch drum (B). Starting with the clutch wave-plate, alternately install the wave-plates (C) (3) and the discs (D) (3). Install the clutch end-plate (E) with the flat side down on the top disc.
    Fig 12: Installing Wave Spring In 3rd Clutch Drum
    G06768722Courtesy of AMERICAN HONDA MOTOR CO., INC.

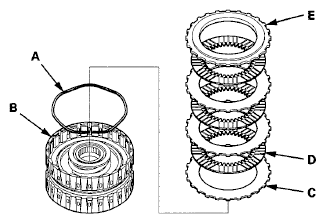

  15. Install the wave spring (A) in the 5th clutch drum (B). Starting with the clutch wave-plate, alternately install the wave-plates (C) (3) and the discs (D) (3). Install the clutch end-plate (E) with the flat side down on the top disc.
    Fig 13: Installing Wave Spring In 5Th Clutch Drum
    G06768723Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Install the snap ring with a screwdriver to secure the clutch end-plate.
    Fig 14: Installing Snap Ring With Screwdriver
    G06768724Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Check that the clutch piston moves by applying air pressure into the fluid passage.
