Output Shaft (Countershaft) Speed Sensor Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the output shaft (countershaft) speed sensor connector, and remove the output shaft (countershaft) speed sensor (A).

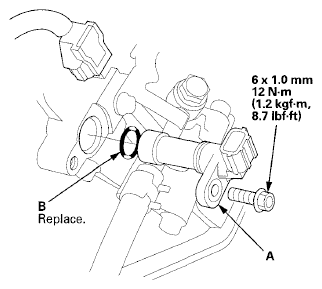

    Fig 1: Removing Output Shaft (Countershaft) Speed Sensor With Torque Specifications
    G06768448Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install a new O-ring (B) on the new output shaft (countershaft) speed sensor, then install the output shaft (countershaft) speed sensor.
  4. Check the connector for rust, dirt, or oil, then connect the connector securely.
  5. Install the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
