DTC P0962: A/T Clutch Pressure Control Solenoid Valve A (Open or Short)

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review General Troubleshooting Information (see GENERAL TROUBLESHOOTING INFORMATION ).
This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
Some wire colors vary according to the model year, and are indicated with an asterisk as follows:
- *(1): '09 - 10 models
- *(2): '11 - 12 models

Clear the DTC with the HDS.
Check that DTC P0962 recurs.
Is DTC P0962 indicated?

YES -Go to step 6.

NO -Go to step 3.
Select Clutch Pressure Control (Linear) Solenoid Valve A in the Miscellaneous Test Menu, and test A/T clutch pressure control solenoid valve A with the HDS.
Does the HDS indicate NORMAL?

YES -Go to step 4.

NO - go to step 6.
In the Clutch Pressure Control Solenoid Control menu, select Clutch Pressure Control Solenoid Valve A at 1.0 A.
Monitor the OBD status for P0962 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.
Does the HDS indicate FAILED?

YES -Go to step 6.

NO -Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals at A/T clutch pressure control solenoid valve A and the PCM. If the HDS indicates NOT COMPLETED, return to step 3 and recheck.
Turn the ignition switch to LOCK (0).
Disconnect the A/T clutch pressure control solenoid valve A connector.
Measure the resistance between A/T clutch pressure control solenoid valve A connector terminals No. 1 and No. 2.

Fig 1: Measuring Resistance Between A/T Clutch Pressure Control Solenoid Valve A Connector Terminals No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 3-10 Ω?

YES -Go to step 9.

NO -Replace A/T clutch pressure control solenoid valve A (see A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE A REPLACEMENT ), then go to step 19.
Check for continuity between A/T clutch pressure control solenoid valve A connector terminal No. 2 and body ground.

Fig 2: Checking Continuity Between A/T Clutch Pressure Control Solenoid Valve A Connector Terminal No. 2 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 10.

NO -Repair an open in the wire between A/T clutch pressure control solenoid valve A and ground (G101), or repair poor ground (G101), then go to step 19.
Jump the SCS line with the HDS.
Disconnect PCM connector B (49P).
Check for continuity between PCM connector terminal B40 and A/T clutch pressure control solenoid valve A connector terminal No. 1.

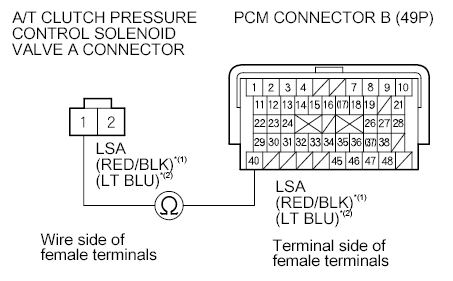

Fig 3: Checking Continuity Between PCM Connector Terminal B40 And A/T Clutch Pressure Control Solenoid Valve A Connector Terminal No. 1
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 13.

NO -Repair an open in the wire between PCM connector terminal B40 and A/T clutch pressure control solenoid valve A, then go to step 19.
Check for continuity between A/T clutch pressure control solenoid valve A connector terminal No. 1 and body ground.

Fig 4: Checking Continuity Between A/T Clutch Pressure Control Solenoid Valve A Connector Terminal No. 1 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair a short in the wire between PCM connector terminal B40 and A/T clutch pressure control solenoid valve A, then go to step 19.

NO -Go to step 14.
Reconnect all connectors.
Update the A/T software in the PCM if it does not have the latest software (see ECM/PCM UPDATE ), or substitute a known-good PCM (see SUBSTITUTING THE ECM/PCM ).
Start the engine, and wait for at least 1 second.
Check for Pending or Confirmed DTCs with the HDS.
Is DTC P0962 indicated?

YES -If the PCM was updated, substitute a known-good PCM (see SUBSTITUTING THE ECM/PCM ), then recheck. If the PCM was substituted, go to step 1.

NO -Go to step 18.
Monitor the OBD status for P0962 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.
Does the HDS indicate PASSED?

YES -If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM (see ECM/PCM REPLACEMENT ). If any other DTCs were indicated on step 17, go to the indicated DTC's troubleshooting.

NO -Check for poor connections and loose terminals at A/T clutch pressure control solenoid valve A and the PCM. If the PCM was updated, substitute a known-good PCM (see SUBSTITUTING THE ECM/PCM ), then recheck. If the PCM was substituted, go to step 1. If the HDS indicates NOT COMPLETED, return to step 16 and recheck.
Reconnect all connectors.
Clear the DTC with the HDS.
Start the engine, and wait for at least 1 second.
Check for Pending or Confirmed DTCs with the HDS.
Is DTC P0962 indicated?

YES -Check for poor connections and loose terminals at A/T clutch pressure control solenoid valve A and the PCM, then go to step 1.

NO -Go to step 23.
Monitor the OBD status for P0962 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.
Does the HDS indicate PASSED?

YES -Troubleshooting is complete. If any other DTCs were indicated on step 22, go to the indicated DTC's troubleshooting.

NO -Check for poor connections and loose terminals at A/T clutch pressure control solenoid valve A and the PCM, then go to step 1. If the HDS indicates NOT COMPLETED, return to step 21 and recheck.
