ATF Cooler Hose Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Drain the automatic transmission fluid (ATF) (see ATF REPLACEMENT ).

Install the ATF cooler hoses over the ATF cooler lines, and secure the hoses with the clips as shown in the details (A) (B) (C) (D), shown in the following figure. Keep the tabs of the clips clear of other parts.

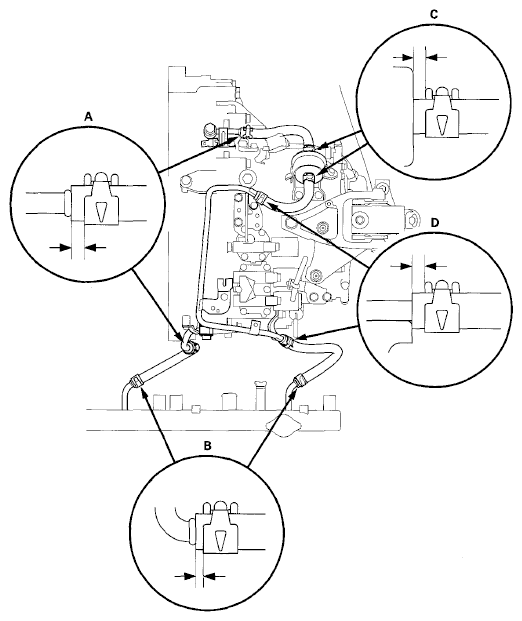

Fig 1: Identifying ATF Cooler Hose Points

Courtesy of AMERICAN HONDA MOTOR CO., INC.

REFERENCE CHART

Details	Cooler Hose End	Installed Distance of Clip
A	Contacts the bulge on the line	Between clip end and hose end:6-8 mm (0.24-0.31 in)
B	Contacts the bulge on the line of the ATF cooler	Between clip end and hose end:2-4 mm (0.08-0.16 in)
C	Contacts the ATF filter housing (both sides)	Between clip end and ATF filter housing (both sides): 6-8 mm (0.24-0.31 in)
D	Contacts the bracket on the line	Between clip end and hose end:6-8 mm (0.24-0.31 in)

Refill the transmission with ATF (see (see step 6 ).
