Differential Carrier and Final Driven Gear Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the final driven gear (A) from the differential carrier (B). The final driven gear bolts have left-hand threads.

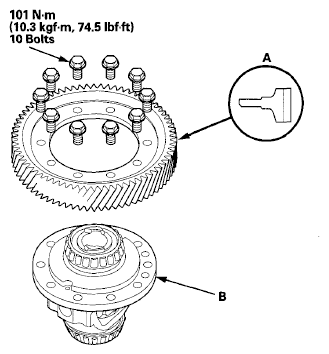

    Fig 1: Removing Final Driven Gear From Differential Carrier With Torque Specifications
    G06768765Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the final driven gear on the differential carrier in the direction shown.
  3. Tighten the bolts to 101 N.m (10.3 kgf.m, 74.5 lbf.ft) in a crisscross pattern in at least two steps.
