Backlash Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Install the driveshaft and intermediate shaft into the differential assembly, and place the axles on V-blocks (A).

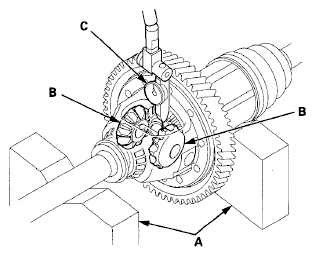

Fig 1: Installing Driveshaft And Intermediate Shaft Into Differential Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the backlash of the pinion gears (B) with a dial indicator (C).
Standard: 0.05-0.15 mm (0.002-0.006 in)
If the backlash is out of standard, replace the differential carrier (see CARRIER BEARING REPLACEMENT ).
