A/T Clutch Pressure Control Solenoid Valve B and C Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Remove the breather hose (A) from its clamp (B), and remove the breather hose clamp bracket (C).

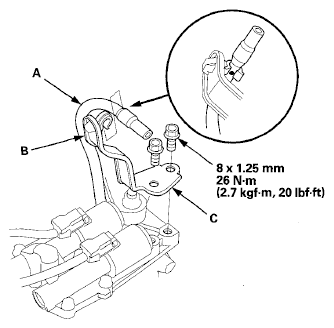

    Fig 1: Removing Breather Hose Clamp Bracket With Torque Specifications
    G06768445Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connectors (A) from A/T clutch pressure control solenoid valve B and C.

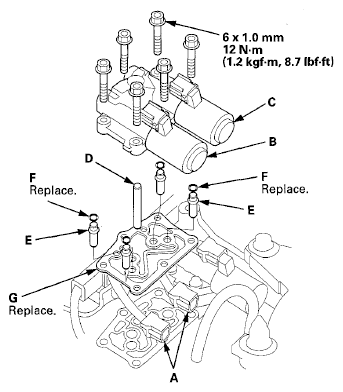

    Fig 2: Disconnecting Connectors (A) From A/T Clutch Pressure Control Solenoid Valve B And C With Torque Specifications
    G06768446Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove A/T clutch pressure control solenoid valve B and C.
  5. Remove the ATF pipe (D), the ATF joint pipes (E), the O-rings (F), and the gasket (G).
  6. Clean the mounting surface and fluid passages of the transmission housing.
  7. Install a new gasket with blue side down; white side up on the transmission housing.
  8. Install the ATF pipe and the ATF joint pipes, and install new O-rings over the ATF joint pipes.
  9. Install A/T clutch pressure control solenoid valve B and C.
  10. Check the connectors for rust, dirt, or oil, clean or repair if necessary, then connect the connectors securely.
  11. Install the breather hose clamp bracket, and install the breather hose on its clamp at the dot.
  12. Install the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
