Parking Brake Lever Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the parking brake lever fully.
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Disconnect the parking brake switch connector (A) from the parking brake switch (B).

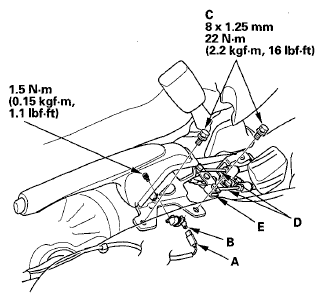

    Fig 1: Parking Brake Lever Mount Bolts With Torque Specifications
    G05959230Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the parking brake lever mount bolts (C).
  5. Disconnect the parking brake cables (D) from the equalizer (E), see illustration above.
    NOTE: For more clarification of cable ends and equalizer, see Figure.
  6. Remove the parking brake switch.
  7. Install the parking brake lever in the reverse order of removal.
  8. Adjust the parking brake (see ADJUSTMENT  ).
